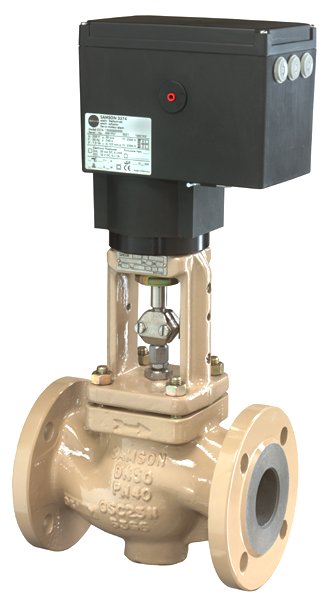

2-Way Modulating Level Control Valve
Technical Specification:
| Parameter | Specification |
|---|---|
| Type | SKV 3400-2 |
| Body Material | ENJL 1040 PN16, ENJS 1049 PN25, 1.0619 PN40 |
| Leakage Class | Equal Percentage / Linear |
| Operating Temperature | -10°C to +220°C |
| Supply | 220 VAC (Optional: 24 VDC) |
| Control Signal | 3-Step (Optional: 4–20 mA) |
| Protection Class | IP54 |
| Protection Switch | Standard: 2 × Safety Limit Switch |
SIZE AVAILABLE :
DN 15, DN 20, DN 25, DN 32, DN 40, DN 50, DN 65, DN 80
PRESSURE CLASS :
PN 16
