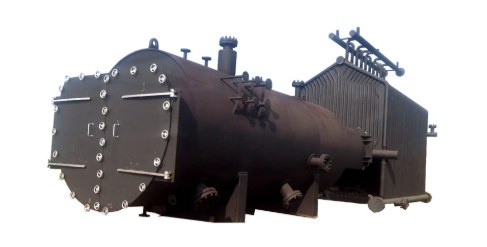

Combo Package Type Boiler​- DEHU

Specifications

• Type: Shell Type with Water Wall
• Capacity Range: 2 TPH to 12 TPH
• Pressure: 10.5 kg/cm² to 21 kg/cm²
• Fuel: Coal, Wood, Husk, Oil & Gas
• Feeding System: Manual|Feeder|Burner

Key Characteristics

• Simple Construction
• High Efficiency – Less Fuel Cost
• Easy Operation & Maintenance
• Multi Fuel Operating Options

Product Overview: Combo Package Type Boiler

Combo Package Type Boiler integrates both Fire-Tube and Water-Tube boiler technologies for optimal performance and efficiency. In this system, the Fire-Tube Boiler serves to heat the water, while the Water-Tube Boiler—positioned above it—is responsible for steam generation. During operation, hot combustion gases first pass through the Water-Tube Boiler, transferring heat effectively before exiting the system via the chimney. This dual-function design enhances thermal efficiency and provides a compact, space-saving solution ideal for industrial applications.
