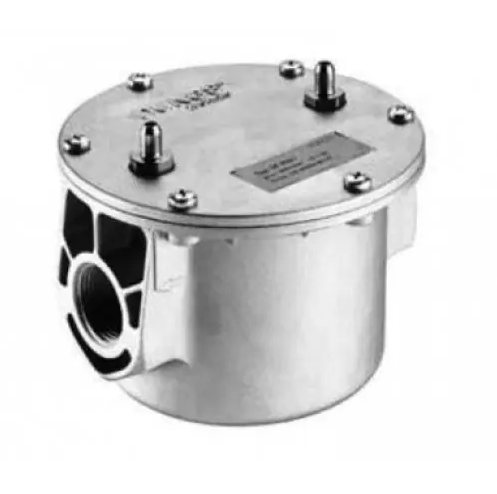

DUNGS Gas and Air Filter (with Thread)

Filter for interior gas lines as per DIN 3386 with high dust storage capacity.

  • GF/1: Threaded connection as per ISO 7/1.
  • GF/3, GF/4 and GF: Flange connection as per DIN EN 1092-1.
  • Max. flow velocity: 20 m/s.
  • Installation option for pressure measurement point for filter monitoring.

Model Versions :

  • GF/1: Rp 1/2 – Rp 2
  • GF/3: DN 40
  • GF/4: DN 50 – DN 100
  • GF: DN 125 – DN 200
Type Max. Pressure

Title

1%
Rp. Design
GF505/1  0.5 bar Rp. 1/2 MS
GF507/1 0.5 bar Rp. 3/4 MS
GF510/1 0.5 bar Rp. 1/2 MS
GF515/1 0.5 bar Rp. 1 1/2 MS
GF520/1 0.5 bar Rp. 2 MS
GF4005/1 4.0 bar Rp. 1/2 VS
GF4007/1 4.0 bar Rp. 3/4 VS
GF4010/1 4.0 bar Rp. 1 VS
GF4015/1 4.0 bar Rp. 1 1/2 VS
GF4020/1 4.0 bar Rp. 2 VS

MS = screw connection
VS = screw plug
