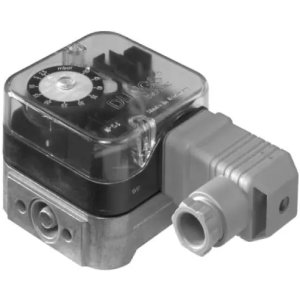

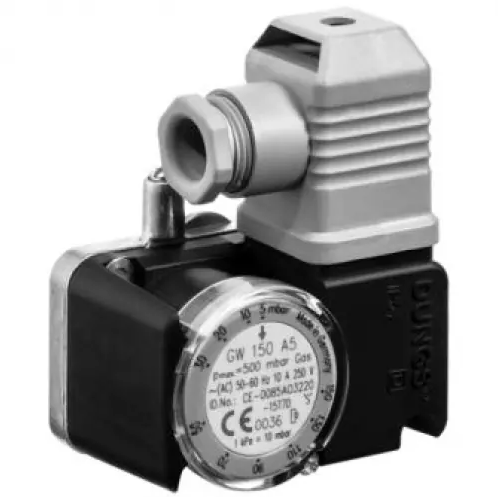

DUNGS Pressure Switch GW…A5,GW…A5/1Series
DUNGS GW…A5 pressure switch is a compact pressure switch as per EN 1854 for DUNGS multiple actuators. Pressure switches for DUNGS multiple actuators GasMultiBloc and DMV double solenoid valve which can be either mounted directly on housing or by using an adapter. Suitable for gases of families 1,2,3 and other neutral gaseous media.
The pressure switches are suitable for switching a circuit on, off or over on changes in actual pressure relative to the set switching point (reference value). The switching point can be set easily and quickly using a setting wheel provided with a scale without using a pressure gauge.
The GW…A5 is a single-acting pressure switch acting in pressure range. The control unit responds to pressure. If the set reference value is exceeded or undershot, the circuit is switched on, off or over. Max. Operating pressure: 500/600 mbar
Model Versions :
| GW.. A5 Model : | Setting range [mbar] | c/with .. |
| GW 3 A5 | 1 mbar – 3 mbar | with mounting kit |
| GW 10 A5 | 2 mbar -10 mbar | |
| GW 50 A5 | 5 mbar – 50 mbar | with/without mounting kit |
| GW 150 A5 | 5 mbar – 150 mbar | |
| GW 500 A5 | 100 mbar – 500 mbar | |
| GW.. A5/1 Model : | Setting range [mbar] | c/with .. |
| GW 10 A5/1 | 2 mbar -10 mbar | with damping orifice and mounting kit |
| GW 50 A5/1 | 5 mbar – 50 mbar | |
| GW 150 A5/1 | 5 mbar – 150 mbar | |
| GW 500 A5/1 | 100 mbar – 500 mbar |
