DUNGS Valve Proving Module Control Unit (Valve Check) VPM-VC Series

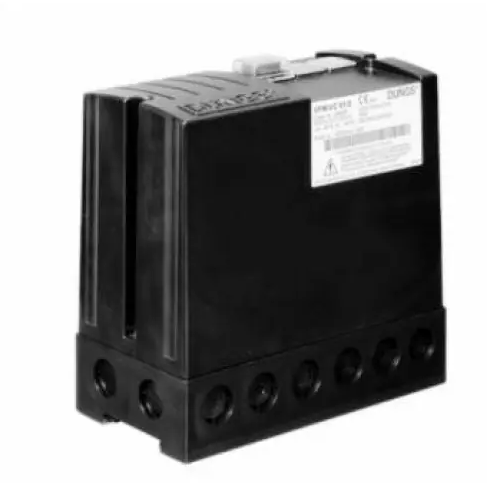

VPM-VC Valve Test Module

The VPM-VC is designed for automatic leak testing between two solenoid valves in gas-consuming equipment, either before system start-up or after shutdown. It can function as a stand-alone leakage tester or be integrated with automatic burner control systems.

Typical Applications:

• Gas burner systems for heating

• Process heating and process industry

• Gas engines

The VPM-VC module checks the tightness of burner gas shut-off valves in combination with one or two pressure switches. Testing is performed in accordance with EN 1643. Program sequence, filling/venting options, and timing parameters can all be adjusted to meet system requirements.

Key Features

• Control unit for system leakage tests according to EN 1643.

• Performs tightness checks of gas burner shut-off valves before start-up or after shutdown.

• Operates with one or two gas pressure switches (pressure switches and valves are not included in the scope of delivery).

• Additional pilot or auxiliary valves may be required depending on system design.

Model Version – VPM-VC 24 VDC

• Suitable for automatic leak-tightness testing between two solenoid valves in gas-consuming devices.

• Can be used as a stand-alone leakage tester or combined with PLC systems or automatic burner controls.

• Complies with EN 1643 standards for system leak-tightness tests.

• Works in combination with one or two gas pressure switches.

• User-adjustable settings for program sequence, filling/venting options, and timing to match plant requirements.

• Auxiliary valves and pressure sensing devices are not included in the scope of supply and must be provided as required by the system.
