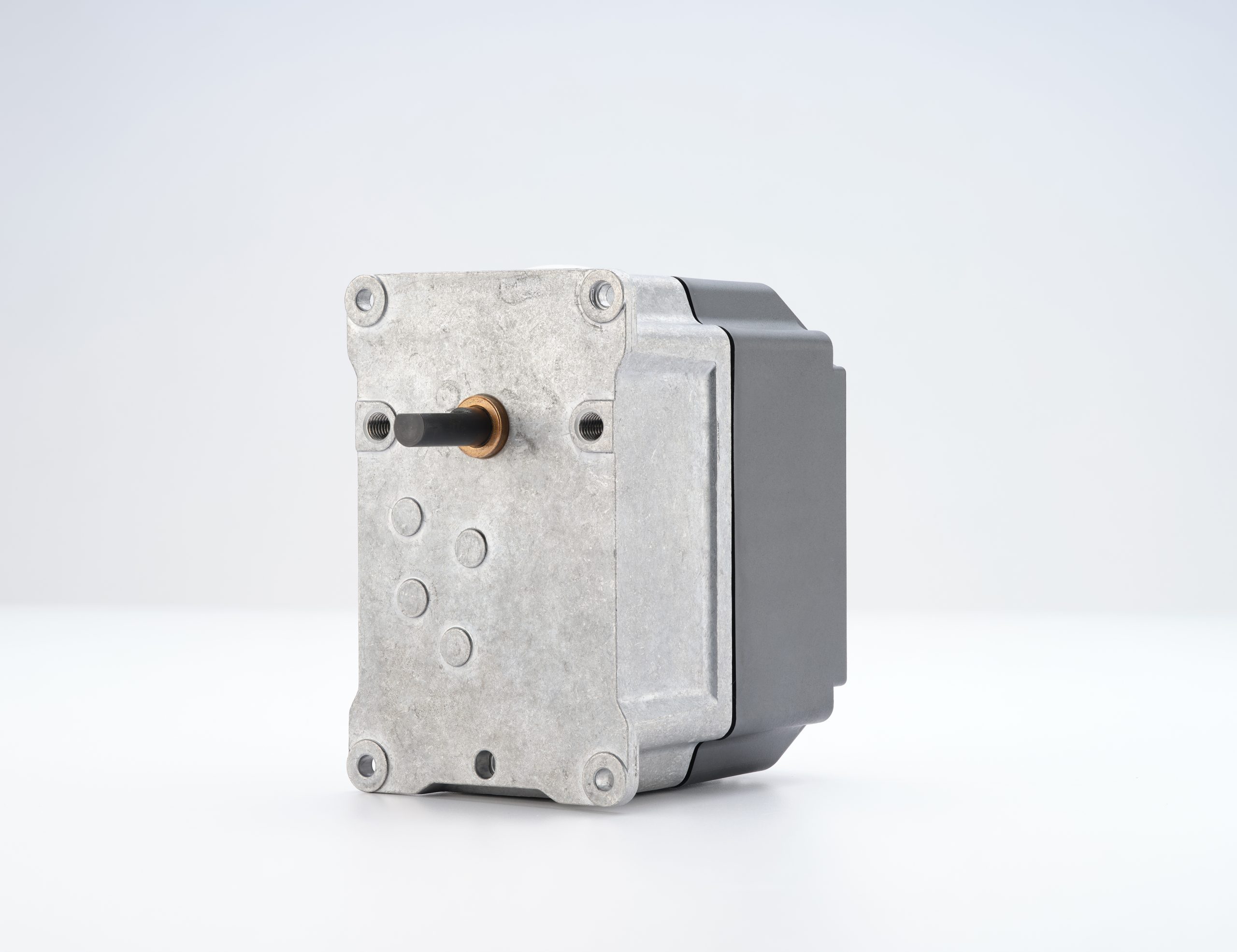

ETC 6027 ACTUATOR

ETC Rotary Actuators

Precision. Performance. Safety.

ETC rotary actuators are expertly engineered for the precise control of air dampers and fuel valves in burner management systems. With an ultra-fine resolution of 0.1º over a 90º stroke, these actuators ensure exceptional accuracy and repeatability in air-fuel ratio control—critical for maintaining optimal combustion efficiency.

By assigning a dedicated rotary actuator to each moving component—such as secondary air dampers, gas valves, and oil metering valves—the need for complex mechanical linkages is eliminated. This design not only simplifies installation but also significantly enhances reliability and overall system performance.

Why Choose ETC Rotary Actuators?

✔️ High Precision Control
Eliminates issues like hysteresis and backlash common in mechanical linkages. Achieves consistently accurate positioning, even during directional changes.

✔️ Boosted Efficiency
Stable combustion profiles mean lower fuel consumption and reduced emissions, even under dynamic operating conditions.

✔️ Scalable & Flexible
Supports up to 10 rotary actuators per system using ETC6000 Series controllers—ideal for complex burner configurations.

✔️ Intelligent Diagnostics
Built-in fault reporting for issues like communication loss or positional error, helping operators maintain uptime and meet safety compliance.

✔️ Certified for Hazardous Environments
ATEX & IECEx compliant versions available, such as the ETC6023-Ex (20Nm) and ETC6024-Ex (40Nm), certified by ExVeritas for safe operation in explosive atmospheres.

✔️ Secure Integration
Each actuator is uniquely coded to its controller with a secure passcode recommissioning process, ensuring system integrity and protection from tampering.

Key Features

• ✅ High-resolution actuation: 0.1° precision

• ✅ Support for up to 10 actuators per system

• ✅ CANBus & Line Voltage interfaces for third-party drive integration

• ✅ Fewer wiring terminations — quicker, cleaner installation

• ✅ Remote monitoring and control capabilities when paired with ETC6000 platform

• ✅ Unique serial number & passcode system for secure replacements

Tailored for Demanding Applications

Whether your operation requires compact precision control or high-torque actuation, ETC rotary actuators provide the flexibility you need. For higher force requirements, large-format rotary actuators can be integrated seamlessly using the ETC6020 Line Voltage servo interface.

Third-party drives for other zones can also be connected via the ETC CANBus servo interface, ensuring full adaptability across a wide range of system designs.

Inspiring Efficiency in Burners

ETC rotary actuators are more than just components—they’re a smarter way to optimize combustion. From simplified installations and advanced safety certifications to intelligent diagnostics and seamless integration, ETC actuators set the standard for modern burner control systems.
