ETC 6083-2 O2 Trim

ETC6083-2 Oxygen Trim System

Precision Oxygen Control for Maximum Efficiency & Emissions Reduction

The ETC6083-2 Oxygen Trim System is a cutting-edge solution engineered to optimize combustion in industrial and commercial heating applications. Through real-time monitoring and automatic adjustment of the fuel-to-air ratio, the system ensures that burners and boilers operate at peak efficiency, minimizing fuel consumption and reducing emissions.

🔧 How It Works

Installed in the flue gas outlet, a high-precision oxygen sensor continuously measures O₂ levels in exhaust gases. This data is instantly relayed to the ETC controller, which dynamically adjusts the burner’s air/fuel mix in real time.

This closed-loop control guarantees optimal combustion across all load conditions—avoiding over-firing, under-firing, and the associated energy loss or emissions increases.

⚙️ Features

• Automatic Trim Setup – Simplifies commissioning with intuitive configuration

• Custom Alarm Settings – Assignable O₂ and temperature limits for proactive fault detection

• Boiler Efficiency Display – Shows calculated CO₂ and system efficiency (when paired with ETC6086 Air Temp Sensor)

• Compatible with Multiple Fuels – Supports natural gas, LPG, and oil

• Dynamic Adjustment – Compensates for variable factors like barometric pressure and humidity

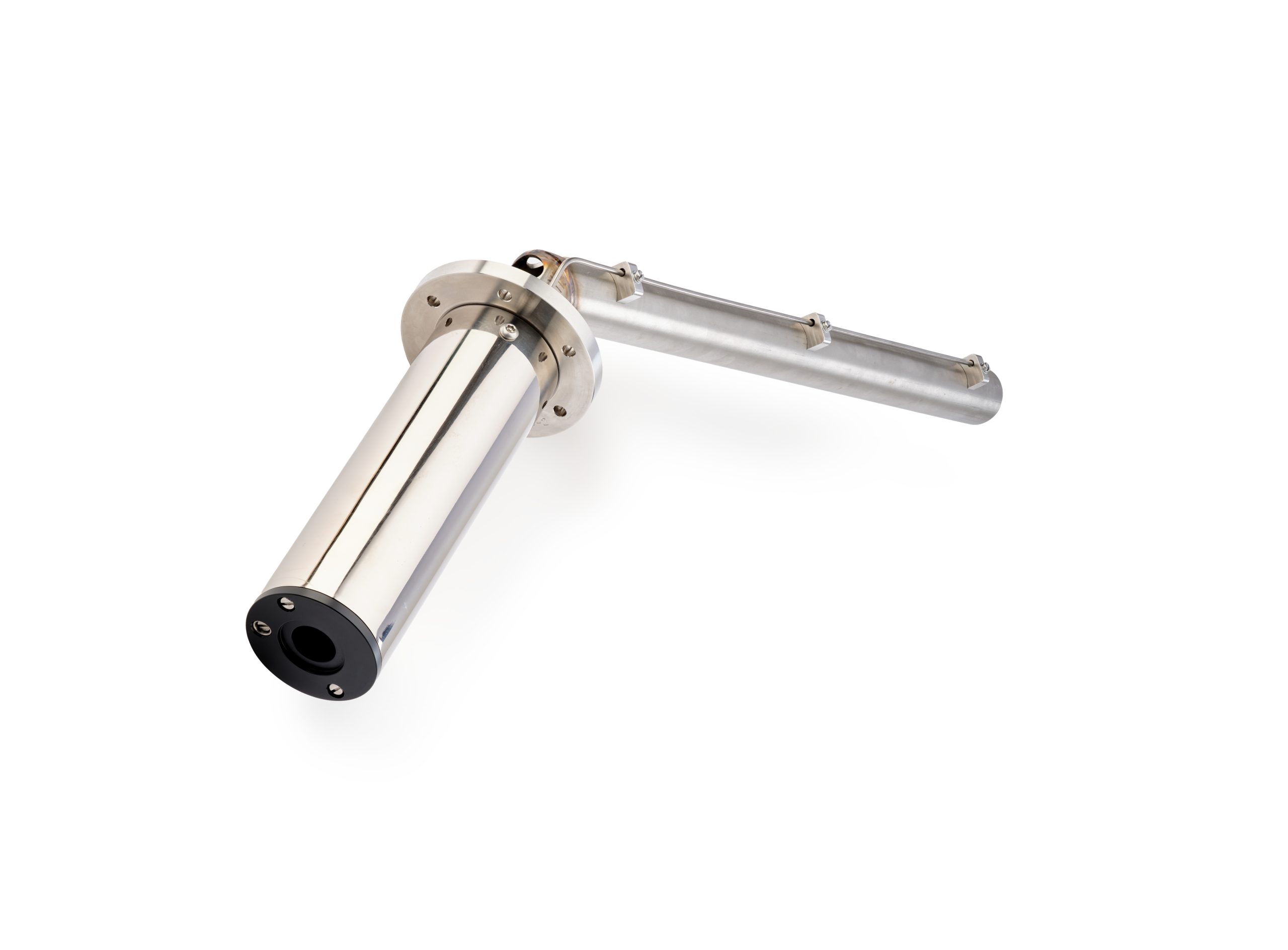

ETC6083 Oxygen Probe

• No moving parts; no reference air required

• Stainless steel body with 6-micron sintered filter

• Operates in flue gas temperatures up to 540°C (1000°F)

• Integrated thermocouple

• Available in sizes for flue diameters from 0.3m to 4.0m

• Exceptionally fast response time for live modulation

🌱 Benefits

• 🔥 Up to 3.5% Fuel Savings – Precise O₂ control reduces fuel waste

• 🌍 Lower CO₂ Emissions – Cleaner combustion means greater environmental compliance

• 🧼 Cleaner Heat Surfaces – Reduces soot and scaling, lowering maintenance needs

• 🔧 Longer Boiler Life – Less thermal stress and cleaner operation extend equipment life

• 📉 Reduced Downtime – Fewer deposits on tubes = fewer shutdowns

• 📡 Adaptability – Perfect for retrofits and new installations alike

✅ Why Choose the ETC6083-2?

With its ability to dynamically optimize combustion, the ETC6083 system ensures maximum efficiency, safety, and environmental responsibility—all while reducing operational costs. Ideal for industries focused on sustainability and cost-effective performance, this solution is a smart investment for any forward-thinking facility.
