ETC 6300

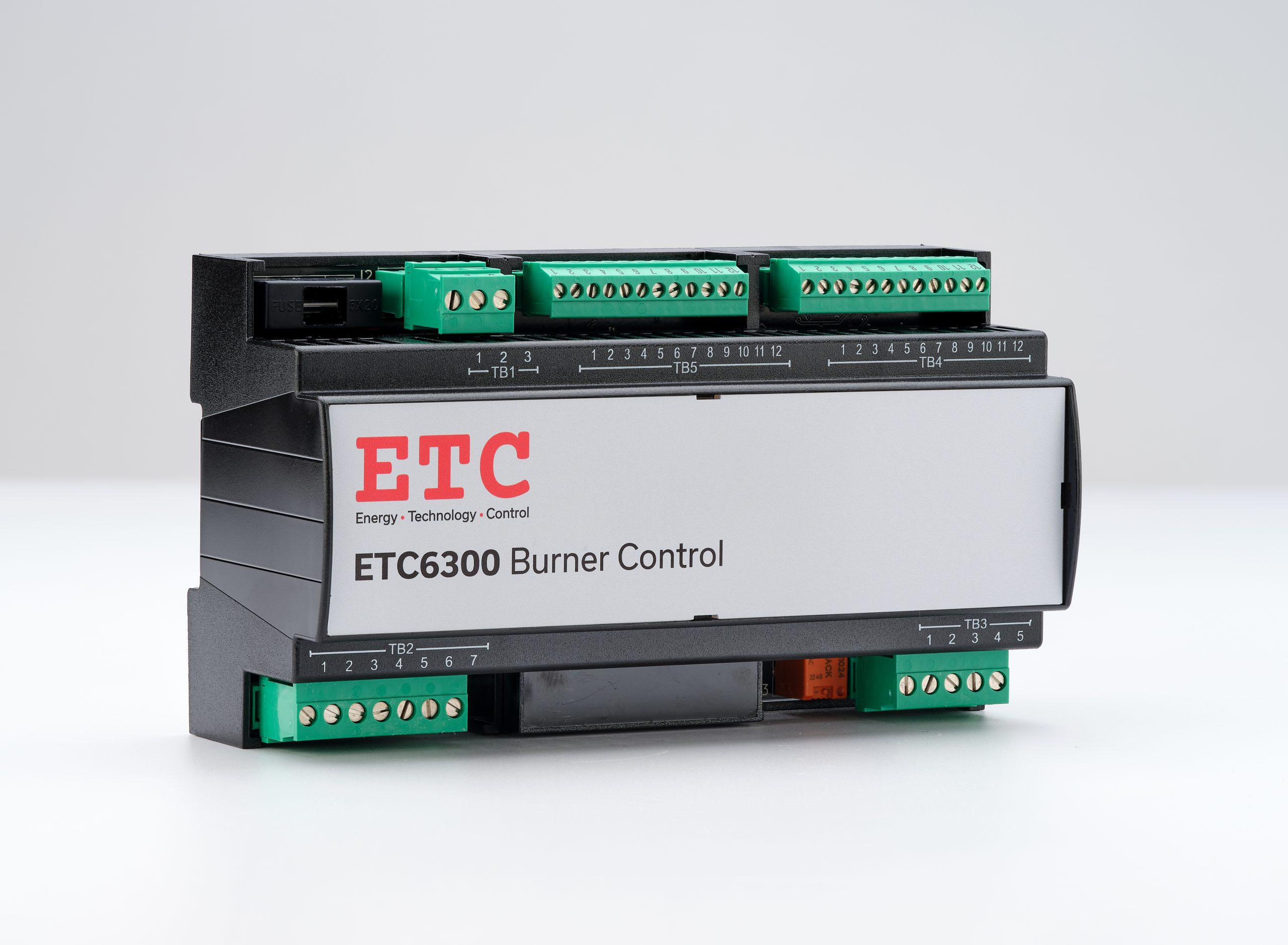

ETC6300 Burner Control System

Compact, Cost-Effective Control for Single-Fuel Burner Applications

🔥 Product Overview

The ETC6300 Burner Control System delivers advanced burner management tailored for small industrial and large commercial installations. Combining the precision of large-scale systems with the simplicity needed for compact applications, the ETC6300 offers comprehensive burner control in a cost-effective and space-saving package.

Ideal for single-fuel burner operations, the ETC6300 seamlessly integrates key functionalities—safety control, performance optimisation, and intelligent monitoring—into one unit. It’s engineered for both new builds and retrofit projects, making it a flexible solution for modern combustion control challenges.

⚙️ Key Features

• Flame & Air Pressure Monitoring
  Ensures safe burner operation through continuous diagnostics.

• Fuel Valve Safety Control
  Automatic shutoff of fuel valves for safety assurance.

• Gas Valve Leak Testing
  Enhances safety by detecting leakage prior to ignition.

• PID Temperature or Pressure Regulation
  Modulating control of firing rate based on process requirements.

• Combustion Fan Speed Control
  Supports feedback via current or pulse signals.

• Dual Combustion Curve Settings
  Utilise up to three actuators for flexible combustion profiles.

• Programmable Digital Inputs
  Six inputs available for burner interlocks or plant safety logic.

• Built-in Modbus RTU Communication
  Supports integration with supervisory systems; ProfiBus available via optional module.

• IoT Connectivity
  Enables remote monitoring and smart control over digital networks.

• Bluetooth Access via App
  The ETC6300 App provides engineers with fast access to settings, diagnostics, and live monitoring.

📲 System Integration

The ETC6300 integrates effortlessly with:

• ETC Plant Master
  Coordinate and optimise load sharing across multi-boiler systems.

• ETC6300 Bluetooth App
  Offers intuitive access to commissioning, monitoring, and diagnostics directly from mobile devices.

🌟 Benefits at a Glance

• 💰 Cost-Effective
  Lower-cost alternative to the ETC6000 series for single-fuel systems.

• 🔧 Easy Installation
  Compact design allows direct burner mounting, reducing panel space and wiring complexity.

• 🔍 Enhanced Accuracy
  Integrated rotary actuators with ±0.1° positioning accuracy eliminate backlash and mechanical play.

• 🌿 Fuel Efficiency
  Improved combustion control and turndown ratio can save up to 5% in fuel usage.

• 🛠️ Predictive Maintenance Ready
  System monitoring supports early fault detection to extend boiler lifespan and minimise downtime.

• 📉 Energy Saving Mode
  Dual setpoint strategy during low-demand periods can save up to 10% in fuel consumption.

• 🔗 Future-Ready Integration
  Supports digital plant networks and smart boiler room configurations.

🧰 Ideal Applications

• Light to medium industrial boiler rooms

• Large commercial heating plants

• Single-fuel burners (natural gas, LPG, oil)

• Retrofitting older control panels with minimal footprint

• Facilities pursuing energy-saving upgrades or smart system integration

📦 Included Capabilities Summary
