ETC 6300 BLUETOOTH

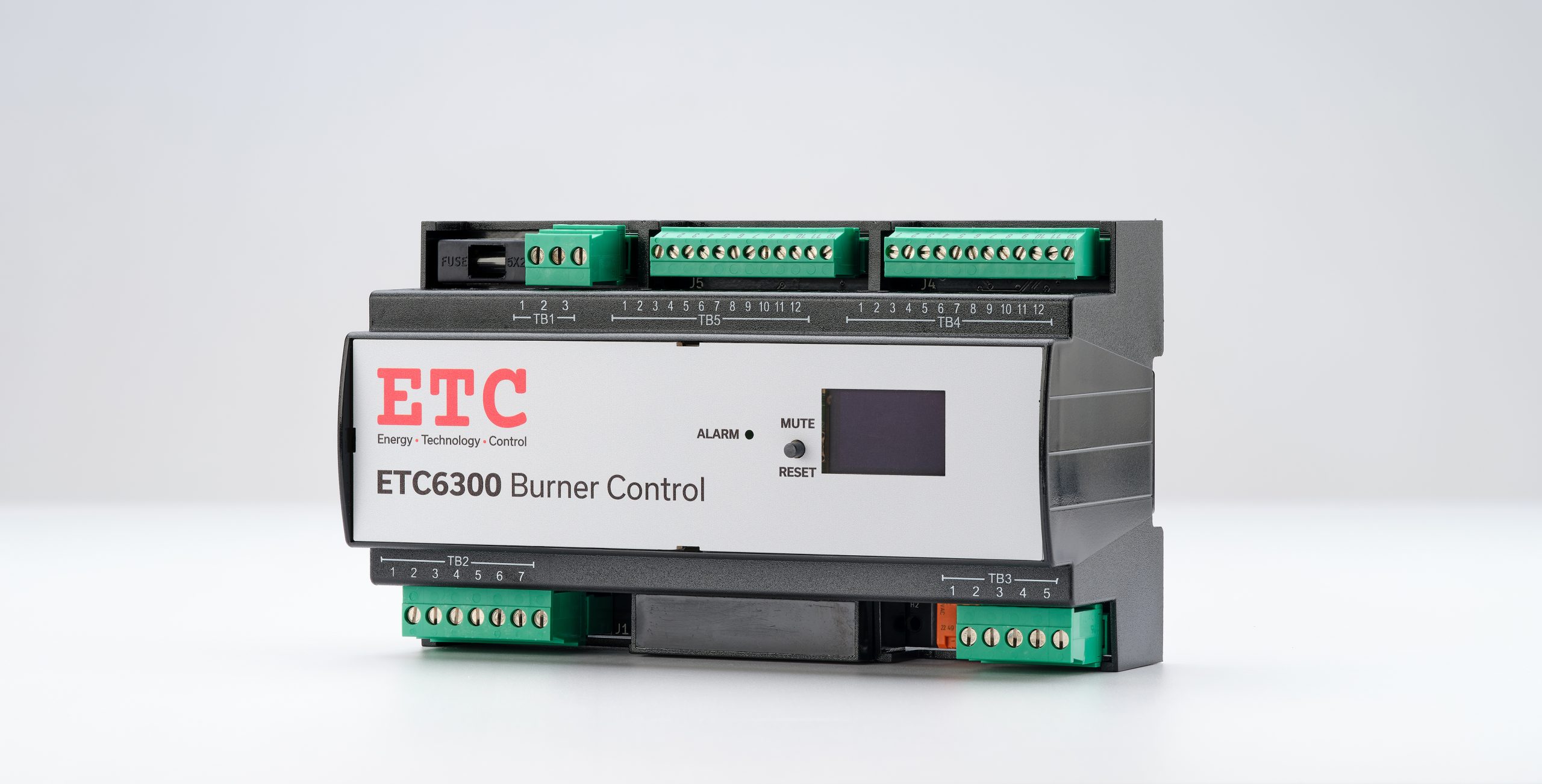

ETC6300 Burner Management System

Compact. Cost-Effective. High-Performance.

🔥 Product Overview

The ETC6300 Burner Management System is an advanced combustion control solution engineered for small industrial and large commercial boiler applications. Designed to strike the perfect balance between performance, safety, and cost-efficiency, the ETC6300 offers precision burner control typically reserved for larger, more complex systems.

This compact controller integrates burner management, safety interlocks, and performance optimisation into a single, easy-to-install unit. Ideal for single-fuel burner applications, the ETC6300 simplifies system design, reduces wiring complexity, and enhances overall reliability—making it the preferred solution for installations demanding efficiency and value without sacrificing control.

⚙️ Key Features

• Flame Monitoring & Air Pressure Sensing
  Ensures safe operation through real-time safety checks.

• Fuel Valve Shutoff Control
  Automates safety interlocks and shutdown procedures.

• Gas Valve Leak Testing
  Detects leaks prior to ignition for enhanced safety compliance.

• PID-Based Modulation Control
  Precisely regulates boiler temperature or pressure by modulating the firing rate.

• Fan Speed Control
  Supports both current signal and pulse signal feedback for combustion fans.

• Dual Combustion Curve Configuration
  Enables use of up to 3 actuators for enhanced flexibility and combustion accuracy.

• Digital Inputs
  Six programmable inputs for burner interlocks or plant logic integration.

• Compatible HMIs
  Seamless integration with ETC606x and ETC607x series Human-Machine Interfaces.

• Communication Ready
  Modbus RTU built-in with optional ProfiBus support via external module.

• On-Board Fault History Logging
  Facilitates diagnostics and preemptive maintenance.

🌟 Key Benefits

• 💡 Cost-Effective Control
  Offers a lower-cost alternative to the ETC6000 Series, ideal for single-fuel burners.

• 🔧 Precision Through Innovation
  Integrated rotary actuators with ±0.1° accuracy replace mechanical linkages, eliminating backlash and improving positioning repeatability.

• 🌍 Fuel & Emissions Savings
  Improved combustion and turndown ratios help achieve up to 5% savings in fuel and reduce harmful CO₂ emissions.

• 🛠️ Extended Boiler Lifespan
  Smooth modulation and intelligent diagnostics reduce maintenance and extend equipment life.

• 💤 Second Setpoint Function
  Allows fuel savings of up to 10% during low-demand periods by maintaining a lower, energy-saving setpoint.

📲 Integration Capabilities

• 6300 Bluetooth App
  Provides technicians with wireless access to diagnostics, configuration, and performance data.

• ETC Plant Master Compatibility
  Enables multi-boiler coordination, load balancing, and site-wide performance optimisation.

🧰 Ideal Applications

• Commercial buildings (hospitals, schools, malls)

• Food processing and light manufacturing plants

• Single-fuel burner systems (natural gas, LPG, oil)

• Boiler retrofits requiring compact footprint

• Projects with tight budgets requiring high control reliability
