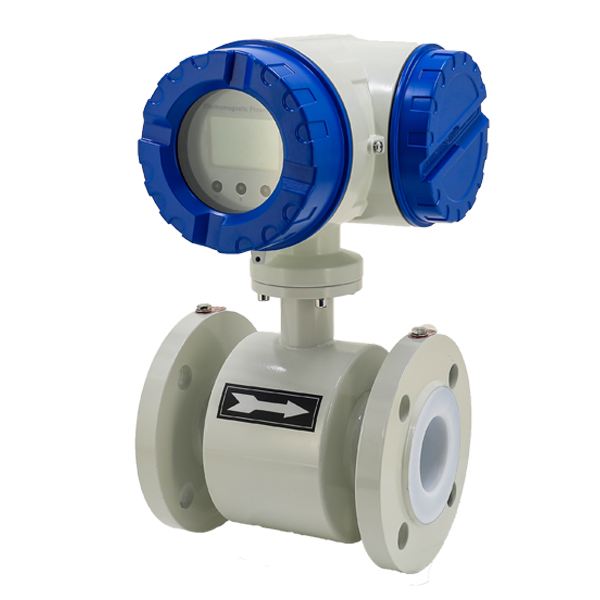

Magnetic Flow Meter

Parameter	Specification
Type	MXW
Diameter	PTFE Liner: DN2.5 – DN1000 Rubber Liner: DN50 – DN3000
Rubber	Yes (Rubber liner available)
Flow Direction	Forward / Reverse
Repeatability Error	≤ 0.1%
Accuracy	±0.5% of rate (±0.2% of rate available)
Medium Temperature with Rubber Liner	-20°C to +60°C
Medium Temperature with PTFE Liner	-20°C to +120°C
Medium Temperature with PFA	-20°C to +180°C
Velocity Range	0.3 – 10 m/s
Ambient Temperature	-20°C to +60°C
Relative Humidity	5% – 95% RH
Power Consumption	< 20 W
Protection Grade	IP65; IP68 (for Remote Type)
