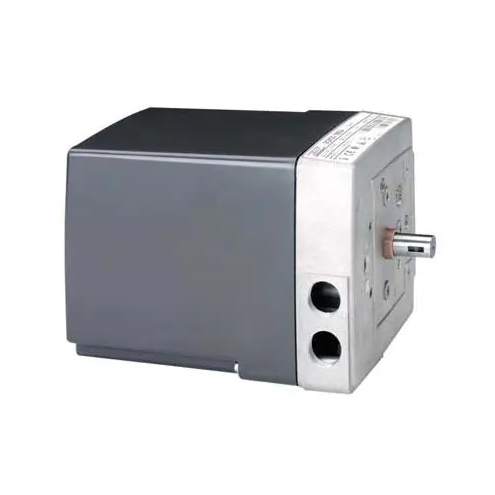

Siemens Actuator Servomotor SQM1 / SQM2 Series
The SQM1.. / SQM2.. is an actuators for air dampers and control valves of oil burners.
It is reversible electromotoric actuators :
• Torques:
– SQM1… up to 10 Nm
– SQM2… up to 20 Nm
• Running times:
– SQM1… 14…100 s
– SQM2… 29…66 s
• Versions:
– Clockwise or counterclockwise rotation
| SQM1 Model Series : | SQM2 Model Series : | |||
| AC 230 V | AC 120 V | AC 230 V | AC 120 V | |
| SQM10.15502 | SQM10.15561 | SQM20.16502 | SQM20.18501 | |
| SQM10.15562 | SQM10.16501 | SQM20.18502 | SQM21.18501 | |
| SQM10.16102 | SQM10.16561 | SQM21.16502 | ||
| SQM10.16502 | SQM11.16501 | SQM21.18502 | ||
| SQM10.16532 | ||||
| SQM10.16562 | ||||
| SQM11.15502 | ||||
| SQM11.15562 | ||||
| SQM11.16502 | ||||
Remarks
Phased Out
Model SQM10.16562 has been discontinued and is no longer available for order.
Replacement Options
-
SQM40 – Features a directional shaft-mounting design. Significant modifications are required for installation. Commonly used with LME7 controllers.
-
SQM41 – Offers a different rotation configuration.
